GEAP ABS electrical terminal / junction box portfolio @ A Glance
GEAP Introduction
| This
ABS
terminal box
range, OABP, with a IP 66, 67 protection degree, can be extended in
depth. It is available off the shelf in many different sizes. Deeper
components may be installed when an extension frame, OPCP-EE, is
used. The OABP range is well suited for demanding environments,
since water and dust are prevented from entering the
terminal
box, ,
Eldon Global website This ABS terminal box range, OABP, with a IP 66, 67 protection degree, can be extended in depth. It is available off the shelf in many different sizes. Deeper ... apo 12 enclosure box APO-boxes provide optimum security to both operators and equipment because they feature total insulation and protection degree IP67 according to IEC 60529 and EN 60529; Protection degree IK10 against external mechanical impacts according to EN 50102 This protection covers the total volume of the enclosure according to EN 50298 11 different basic enclosures (from 65 x 65 mm up to 361 x 254 mm) with up to ..... APO boxes are UL listed, as per UL Standard 508, types 3, 3R, 4, 4X, 6, 6P, 12. |
 |
GEAP Series - IP66 / IP67 GRP / Polycarbonate Terminal / Junction Boxes |
| 18 Models, FRP Bases, IP67 (Opaque FRP Cover), IP66 (Clear polycarbonate cover) | |
| 186 x 151 x 140 ~ 603 x 603 x 210 | |
| Supply includes: Terminal Box Only | |
| Available accessories include: Depth Extension Frames, Wall mounting Brackets, Steel mounting plates, Pertinax mounting plates, Hinges, Padlock kits, IP20 Air vents, DIN Rails, Terminal blocks, Glands... | |
| RESOURCES: > GEAP Sizes PDF (83kb) > Plastic Terminal Boxes (xxxkb) |

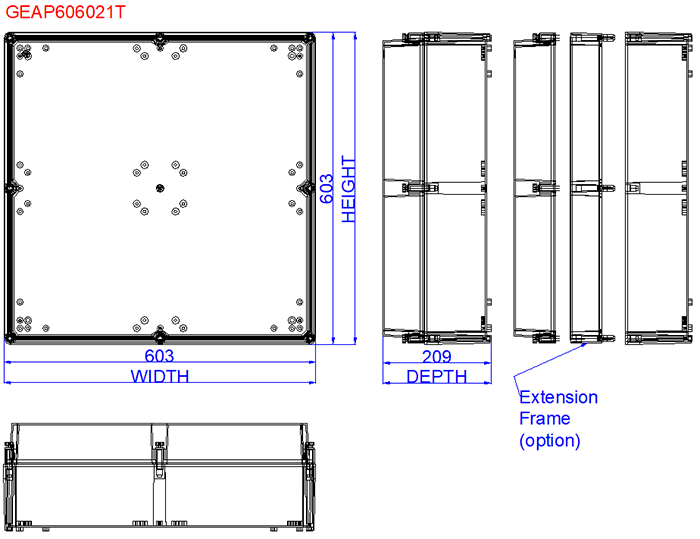

Dimensional orientation of GEAP Terminal Boxes |
 |
CAD drawings (*.dwg, *.dxf) or PDF files available on request. |
| GEAP Grey (opaque) Lids GRP + GRP (IP67) | ||||||
| Model # | Width | Height | Depth | IP | Material | Description |
| GEAP181514G | 186 | 151 | 140 | 67 | GRP | Term Box, Gry Lid |
| GEAP301817G | 302 | 186 | 175 | 67 | GRP | Term Box, Gry Lid |
| GEAP303017G | 302 | 302 | 175 | 67 | GRP | Term Box, Gry Lid |
| GEAP373017G | 372 | 302 | 175 | 67 | GRP | Term Box, Gry Lid |
| GEAP483017G | 488 | 302 | 175 | 67 | GRP | Term Box, Gry Lid |
| GEAP553017G | 558 | 302 | 175 | 67 | GRP | Term Box, Gry Lid |
| GEAP603017G | 603 | 302 | 175 | 67 | GRP | Term Box, Gry Lid |
| GEAP603717G | 603 | 372 | 175 | 67 | GRP | Term Box, Gry Lid |
| GEAP606017G | 603 | 603 | 175 | 67 | GRP | Term Box, Gry Lid |
| GEAP Clear Lids GRP + Polycarbonate (IP66) | ||||||
| Model # | Width | Height | Depth | IP | Material | Description |
| GEAP181514T | 186 | 151 | 140 | 66 | GRP | Term Box, Trans, Lid |
| GEAP301817T | 302 | 186 | 175 | 66 | GRP | Term Box, Trans, Lid |
| GEAP303017T | 302 | 302 | 175 | 66 | GRP | Term Box, Trans, Lid |
| GEAP373017T | 372 | 302 | 175 | 66 | GRP | Term Box, Trans, Lid |
| GEAP483021T | 488 | 302 | 210 | 66 | GRP | Term Box, Trans, Lid |
| GEAP553021T | 558 | 302 | 210 | 66 | GRP | Term Box, Trans, Lid |
| GEAP603021T | 603 | 302 | 210 | 66 | GRP | Term Box, Trans, Lid |
| GEAP603721T | 603 | 372 | 210 | 66 | GRP | Term Box, Trans, Lid |
| GEAP606021T | 603 | 603 | 210 | 66 | GRP | Term Box, Trans, Lid |
| Mounting Plates – 5mm Pertinax | ||||||
| Model # | Width | Height | Depth | Description | ||
| GEAP1815MPP | 140 | 105 | 5 | 5mm Pertinax mounting plate to suit GEAP1815xxx | ||
| GEAP3018MPP | 228 | 139 | 5 | 5mm Pertinax mounting plate to suit GEAP3018xxx | ||
| GEAP3030MPP | 254 | 228 | 5 | 5mm Pertinax mounting plate to suit GEAP3030xxx | ||
| GEAP3730MPP | 298 | 254 | 5 | 5mm Pertinax mounting plate to suit GEAP3730xxx | ||
| GEAP4830MPP | 413 | 254 | 5 | 5mm Pertinax mounting plate to suit GEAP4830xxx | ||
| GEAP5530MPP | 484 | 254 | 5 | 5mm Pertinax mounting plate to suit GEAP5530xxx | ||
| GEAP6030MPP | 528 | 254 | 5 | 5mm Pertinax mounting plate to suit GEAP6030xxx | ||
| GEAP6037MPP | 528 | 324 | 5 | 5mm Pertinax mounting plate to suit GEAP6037xxx | ||
| GEAP6060MPP | 555 | 555 | 5 | 5mm Pertinax mounting plate to suit GEAP6060xxx | ||
| Mounting Plates – 2mm Zinc plated steel | ||||||
| Model # | Width | Height | Depth | Description | ||
| GEAP1815MPST | 134 | 99 | 2 | 2mm Zinc Steel mounting plate to suit GEAP1815xxx | ||
| GEAP3018MPST | 249 | 134 | 2 | 2mm Zinc Steel mounting plate to suit GEAP3018xxx | ||
| GEAP3030MPST | 249 | 249 | 2 | 2mm Zinc Steel mounting plate to suit GEAP3030xxx | ||
| GEAP3730MPST | 319 | 249 | 2 | 2mm Zinc Steel mounting plate to suit GEAP3730xxx | ||
| GEAP4830MPST | 435 | 249 | 2 | 2mm Zinc Steel mounting plate to suit GEAP4830xxx | ||
| GEAP5530MPST | 505 | 249 | 2 | 2mm Zinc Steel mounting plate to suit GEAP5530xxx | ||
| GEAP6030MPST | 550 | 249 | 2 | 2mm Zinc Steel mounting plate to suit GEAP6030xxx | ||
| GEAP6037MPST | 550 | 319 | 2 | 2mm Zinc Steel mounting plate to suit GEAP6037xxx | ||
| GEAP6060MPST | 550 | 555 | 2 | 2mm Zinc Steel mounting plate to suit GEAP6060xxx | ||
| Extension Frames | ||||||
| Model # | Width | Height | Depth | |||
| GEAP1815EXT | 186 | 151 | 35 | |||
| GEAP3018EXT | 302 | 186 | 35 | |||
| GEAP3030EXT | 302 | 302 | 35 | |||
| GEAP3730EXT | 372 | 302 | 35 | |||
| GEAP4830EXT | 488 | 302 | 60 | |||
| GEAP5530EXT | 558 | 302 | 60 | |||
| GEAP6030EXT | 603 | 302 | 60 | |||
| GEAP6037EXT | 603 | 372 | 60 | |||
| GEAP6060EXT | 603 | 603 | 60 | |||
| GEAP Accessories | ||||||
| GEAPAV | IP20 Vent (IP44) | |||||
| GEAPHSA | Hinge set to suit grey lids | |||||
| GEAPHSD | Hinge set to suit clear lids | |||||
| GEAPHSS | Hinge set screws (pack of 2) | |||||
| GEAPPDK | Padlocking set (padlock not included) | |||||
| GEAPWMB | Wall mounting brackets (pack of 4) | |||||
